| fiber laser air path design | ||||||||
| 1 750w or lower fiber source air path | ||||||||

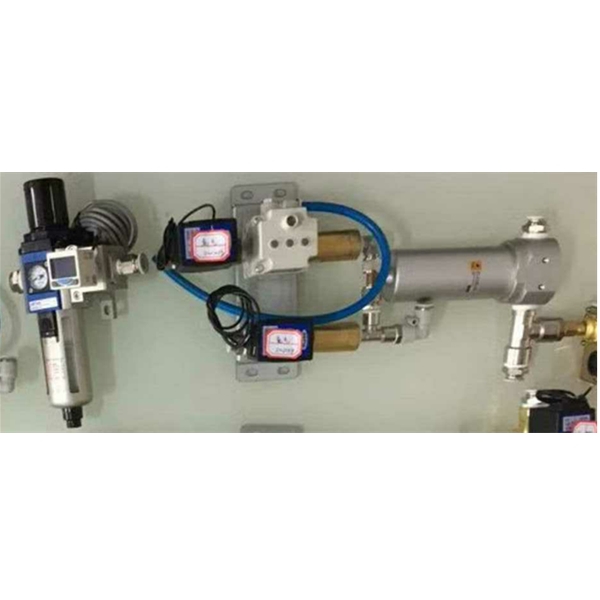

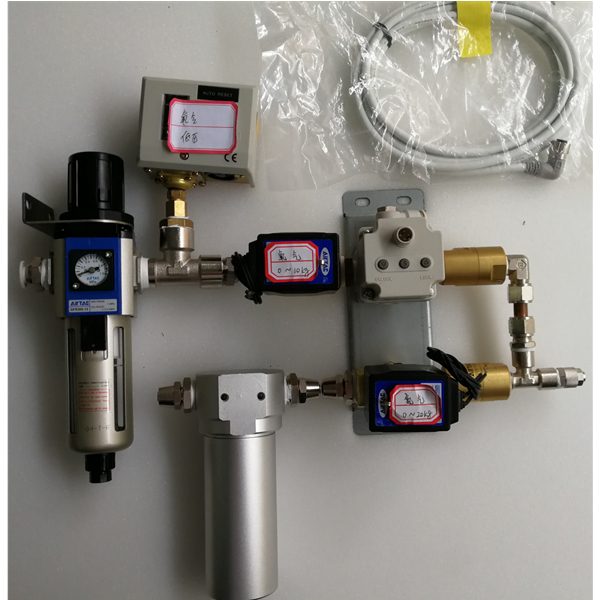

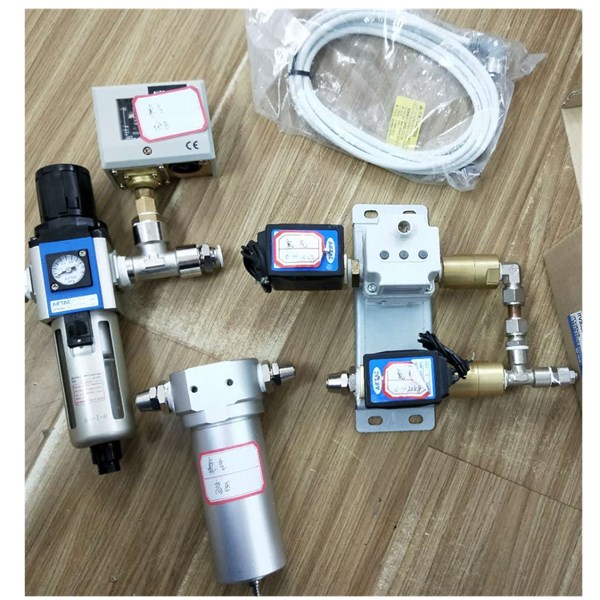

| o2/n2/air | filter | pressure switch |
solenoid valve |
low pressure Proportional valves |
non returnable valvo | air out | ||
| 2 750w-3000w fiber laser source air path | ||||||||

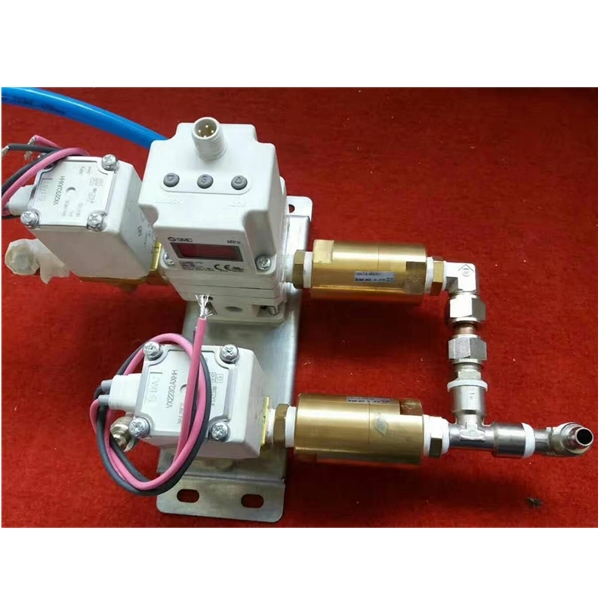

| a 2 path desgin | ||||||||
| o2 | low pressure filter |
low pressure switch |
low pressure solenoid valve |
low pressure Proportional valves |
non returnable valvo | air out | ||
| n2/air | high pressure filter |
high pressure switch |
high pressure solenoid valve |
high voltage non returnable valvo | ||||
| b 3 path desgin | ||||||||
| o2 | low pressure filter |
low pressure switch |
low pressure solenoid valve |
low pressure Proportional valves |
non returnable valvo | air out | ||
| n2 | high pressure filter |
high pressure switch |
high pressure solenoid valve |
high voltage non returnable valvo | ||||
| air | high pressure filter |
high pressure switch |
high pressure solenoid valve |
high voltage non returnable valvo | ||||

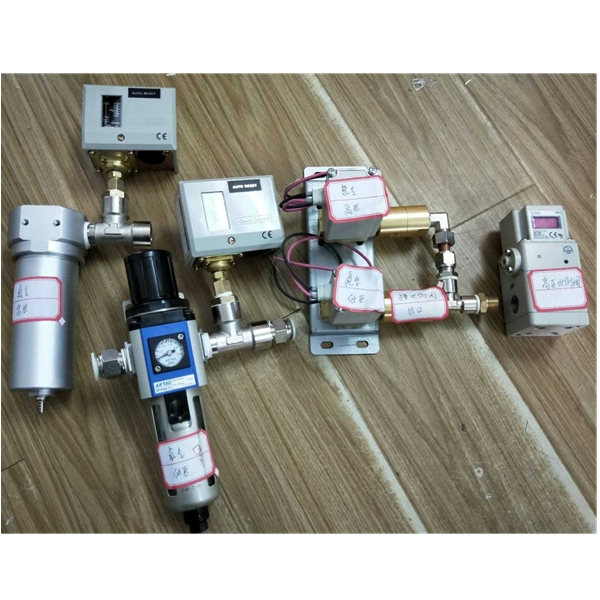

| c notes 2000-3000 fiber laser source ,n2 air better use high voltage Proportional valves | ||||||||
| o2 | low pressure filter |
low pressure switch |
low pressure solenoid valve |
non returnable valvo | high voltage Proportional valves | high voltage non returnable valvo | air out | |
| n2/air | high pressure filter |
high pressure switch |
high pressure solenoid valve |
high voltage non returnable valvo | ||||
| notes if the fiber laser power low, 2 paths can use only low pressure Proportional valves,no need high pressure Proportional valves,but if need high accuracy, better each path use Proportional valves. air accuracy: each path with Proportional valves > two path air mixture then with high voltage Proportional valves > only o2 with Proportional valves |
||||||||
| 3 above 3000w fiber laser source air paths design | ||||||||

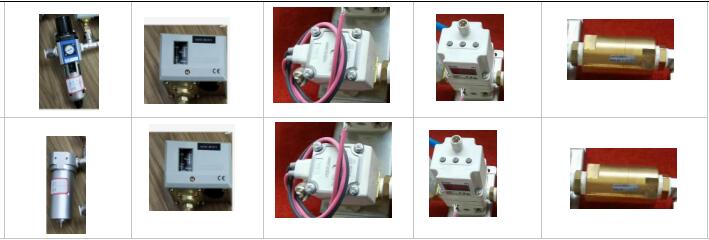

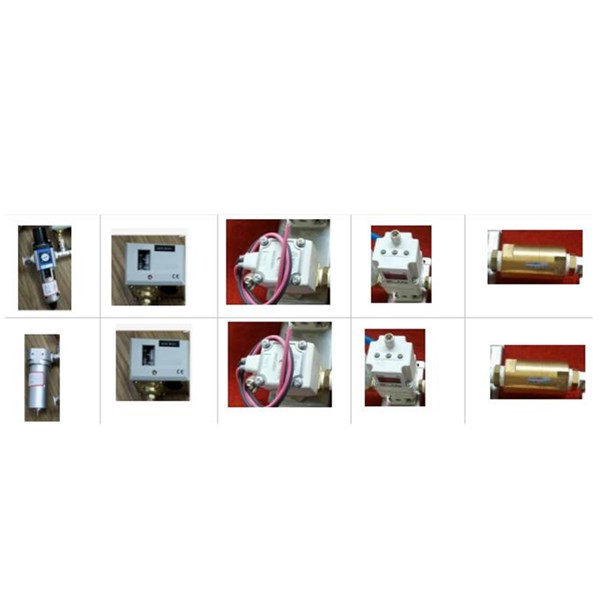

| o2 | low pressure filter |
low pressure switch |
low pressure solenoid valve |
low pressure Proportional valves |
non returnable valvo | air out | ||
| n2/air | high pressure filter |
high pressure switch |
high pressure solenoid valve |
high pressure Proportional valves |
high voltage non returnable valvo | |||
fiber laser air path design including high pressure and low pressure filter pressure switch solenoid valve Proportional valves non returnable valvo
