fiber laser source feibo mars 500w 800w 1000w 1200w 1500w 2000w

关键参数 Key Parameters	Unit			指标Specifications

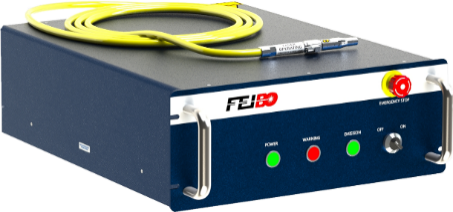

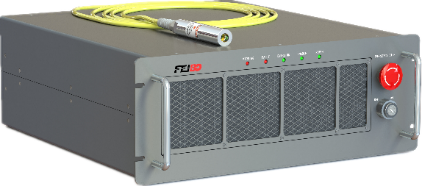

型号 Model Number		YDFL-500-CW	YDFL-800-CW		YDFL-1000-CW
工作模式 Operation Mode CW/QCW
偏振态 Polarization Random
中心波长 Central Wavelength	Nm 1070~ 1090
半高全宽谱宽 Spectral Width FWHM	Nm < 3
额定最大输出功率Rated Max Output Power	W	500	800		1000
功率调节范围Power Tuning Range	% 1 ~ 100
功率稳定性Power Stability	% < 2
光束质量Beam Quality	M² < 1.3 or <2.0
输入电压Operating Voltage	VAC 180 ~ 240
最大功耗Max Power Consumption	W	2200	3200		4000
最大调制频率Max Modulation Freq.	kHz 100
机箱尺寸Dimensions (LWH)	Mm 582x482x177
冷却方式Cooling Method Water
输出头Delivery Head QBH or Customer specified
输出光缆长度Delivery Cable Length	M 10 ~ 15 or Customer Specified
工作环境温度Operating Temperature	◦ +5 ~ +40
冷却水温Cooling Water Temperature ◦ +18 ~ +28					+18 ~ +25
储存温度Storage Temperature	◦ -20 ~ +60

关键参数Key Parameters	Unit				指标Specifications

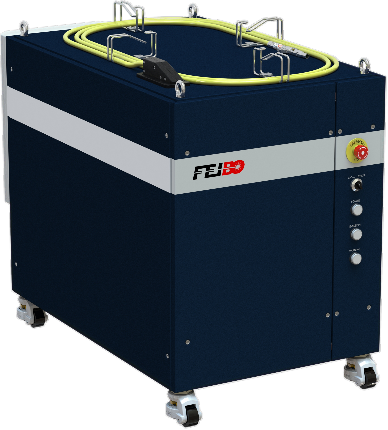

型号Model Number	YDFL-1500-MM		YDFL-3000-MM			YDFL-1500-SM
工作模式Operation Mode CW
偏振态Polarization Random
中心波长Central Wavelength	Nm 1075 ~ 1090
半高全宽谱宽Spectral Width FWHM	Nm < 3
额定最大输出功率Rated Max Output Power	W	1500		3000			1500
功率调节范围Power TuningRange	% 10~100
功率稳定性Power Stability	% < 2
光束质量Beamparameter product	BPP <2.5 or <5					<0.5
输入电压Operating Voltage	VAC 180 ~ 240
最大功耗Max Power Consumption	W	6000		12000			6000
最大调制频率MaxModulation Freq.	kHz 10
机箱尺寸Dimensions(LWH)	Mm 880570830
冷却方式Cooling Method Water
输出光缆长度Delivery Cable Length	M 10 ~ 15 or customerspecified
激光输出头Delivery Head QBH
工作环境温度Operating Temperature	◦ +5 ~ +40
冷却水温Cooling Water Temperature	◦ +18~ +28
储存温度Storage Temperature	◦ -20~ +60

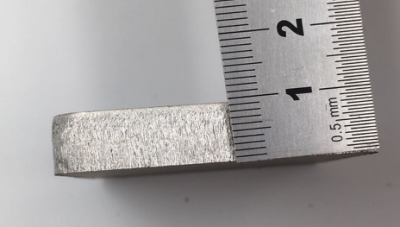

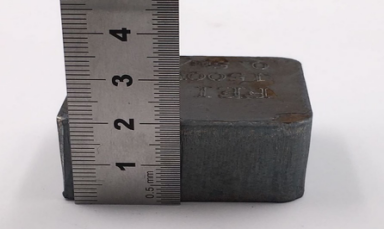

Applications:
