Supports flat and circular tube cutting, providing a versatile and extensive fiber laser cutting solution

It supports the cutting of various radial tubes such as square tube, elliptical tube and lumbar tube and

provides up to 4-axis linkage function. High cutting accuracy, high speed, smooth and beautiful cutting

The BCS100 independent capacitor height adjuster adopts a speed and position double closed-loop algorithm to control the follower of the laser cutting capacitor. Its performance, such as running speed and accuracy, is obviously better than similar products at home and abroad. Unique network communication interface, can achieve a high degree of automatic tracking, sub-perforation, progressive perforation, edge cutting, frog jump up,

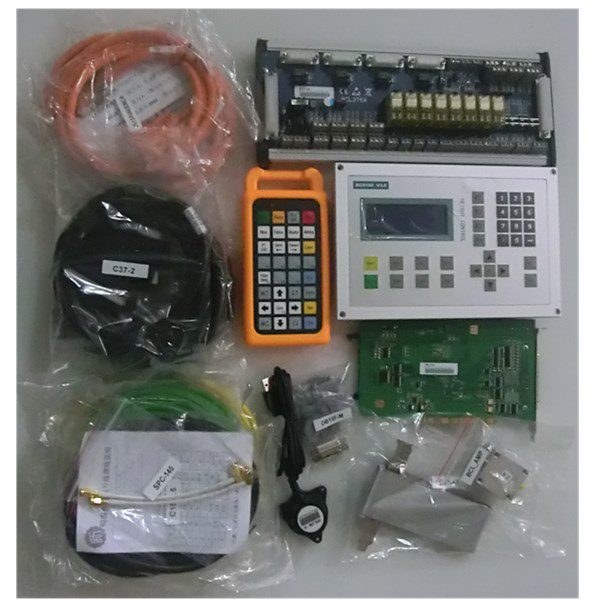

Universal Pulse Laser Cutting Motion Control Card BMC1604



Supports flat and circular tube cutting, providing a versatile and extensive fiber laser cutting solution



The Transportation move control System

A Motor control signal

  1. 3-axis high-speed pulse output, maximum frequency 3MHz
  2. 3-axis encoder feedback channel, quadruple frequency up to 8MHz
  3. Each axis origin, positive and negative limit, servo alarm input signal

B The Motion control performance

1.Control accuracy 0.03mm, actual track accuracy 0.05mm

2.Positioning accuracy 0.001mm, Repeating positioning accuracy 0.003mm

3.1ms control period, S-shaped acceleration and deceleration with filtering

4.Speed forward, turning point intelligent speed

5.Small arc speed limit, local curvature analysis

Corner smoothing



Product Features:

  1. The output function is compared with the real-time position of the encoder to realize the flight scanning cutting function.
  2. Using the adaptive trajectory smoothing algorithm, the Bezier curve transition algorithm is used to process the velocity of the turn of the adjacent motion vector, so that the machine can efficiently turn within the set performance range, thereby avoiding the phenomenon of burning angle in the hot processing.



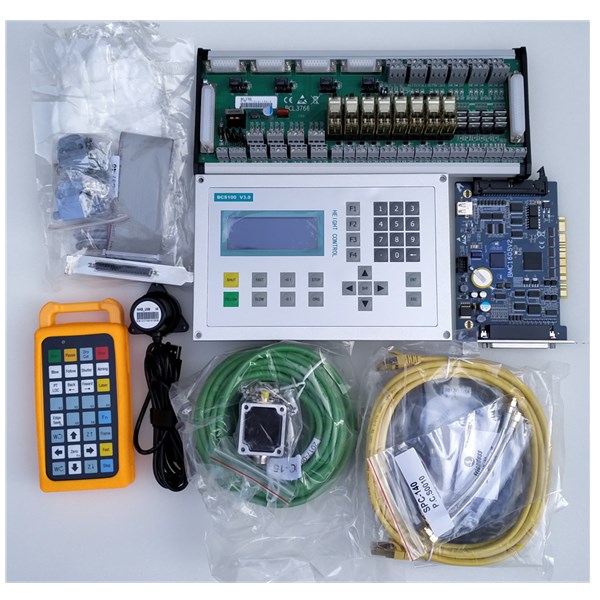

Pipe laser cutting motion control card BMC1605

Abstract: It supports the cutting of various radial tubes such as square tube, elliptical tube and lumbar tube and provides up to 4-axis linkage function. High cutting accuracy, high speed, smooth and beautiful cutting

It supports the cutting of various radial tubes such as square tube, elliptical tube and lumbar tube and provides up to 4-axis linkage function.

Cutting precision, speed, smooth and beautiful cut.

Product Features:

Dual-drive control function, intelligent monitoring of the error of the dual drive axis, real-time error alarm function.

Dedicated laser control interface provides dedicated PWM signals. The carrier frequency can reach up to 50kHz. The level can be arbitrarily switched. It supports 5V and 24V standard. The PWM output can be adjusted in real time based on speed.

Provides two 0-10 volt analog interfaces. Can be arbitrarily configured in the software to achieve real-time control of laser peak power and proportional valve.



BCS100 Independent Capacitor Heighter

The BCS100 independent capacitor height adjuster adopts a speed and position double closed-loop algorithm to control the follower of the laser cutting capacitor. Its performance, such as running speed and accuracy, is obviously better than similar products at home and abroad. Unique network communication interface, can achieve a high degree of automatic tracking, sub-perforation, progressive perforation, edge cutting, frog jump up,



The BCS100 self-contained capacitor height adjuster (hereinafter abbreviated as BCS100) uses a full-closed-loop control method to control the laser-cutting capacitor follower, which is a high-performance capacitance-adjusting device. In addition to the control methods similar to other products, BCS100 also provides a unique Ethernet network communication interface, which can easily achieve high automatic tracking, segmented perforation, progressive perforation, edge-seeking cutting, and frog leaping in conjunction with our CypCut laser cutting software. Lifting, cutting head height setting, flight light path compensation and other functions, its response speed is greatly improved. In terms of servo control, the BCS100 adopts a double-closed-loop algorithm for speed and position. Its performance, such as speed and accuracy, is significantly better than similar products at home and abroad.



Detailed introduction

Performance characteristics:

Ø sampling rate 1000 times per second.

Ø The fastest following speed can reach 500mm/s.

Ø Height follow-up control range is 0-10mm.

Ø Static detection accuracy 0.001 mm, dynamic response accuracy 0.02 mm.

Ø Support network communication, U disk online upgrade.

Ø Support oscilloscope function, real-time detection of capacitance and height changes.

Ø Support plate alarm, missing plate alarm, prevent accidental collision of laser head.

Ø Support edge detection and automatic edge-seeking cutting, support frog-leaping lifting, segmental perforation, and elevation setting.

Ø One-click calibration process, operation is quick and easy.

Ø Adaptable to any cutting head and nozzle, adaptive capacitance parameters.

Ø When the length of the signal transmission cable reaches 100, the signal does not attenuate, and the anti-interference ability is strong.

Ø The upper limit of follow speed depends on the upper limit of servo motor speed and the lead of the screw. 5 mm screw and 3,000 rpm servos with a maximum follow speed of 375 mm/s.



The performance comparison with foreign products is shown in the following table:



Parameter Category/Product Category Germany Product USA Product  BCS100

Sample rate                   500HZ 200HZ 1000HZ

Fastest following speed     200mm/s 100mm/s 500mm/s

Dynamic Response Accuracy    0.05mm 0.1mm 0.05mm

Dynamic measurement accuracy 0.01mm 0.02mm 0.001mm

Calibration method           Manual Manual Automatic

Parameter Setting Method  Potentiometer Dip Switch LCD/Keyboard

Signal Processing      Analog Signal Analog Signal Digital Signal

Price                  BCS100 Price 5 times BCS100 Price 2 times
