1.110*110mm scan area
2.20w 30W 50w fiber laser raycus max
3.original JCZ USB CARD
4.lap top computer hp
5.beijing sino china digital scanning head
6 f theta lens
7 auto focus
8.foot switch ,tools box

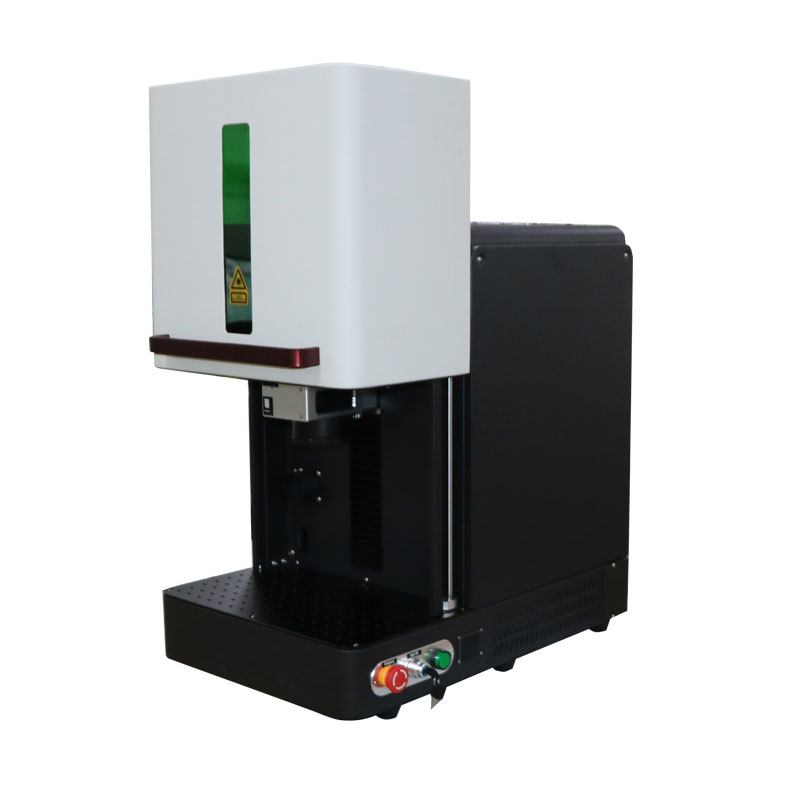

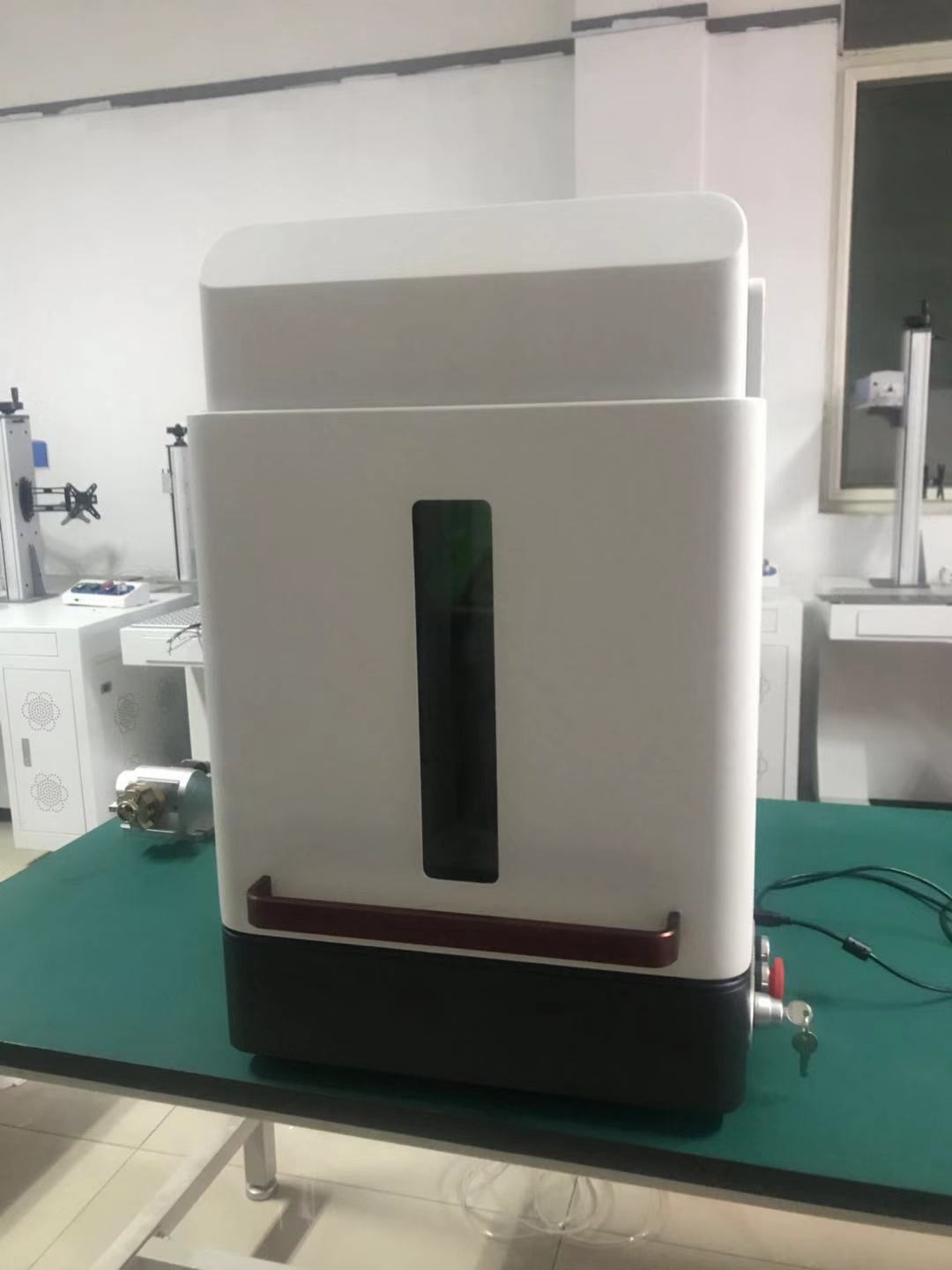

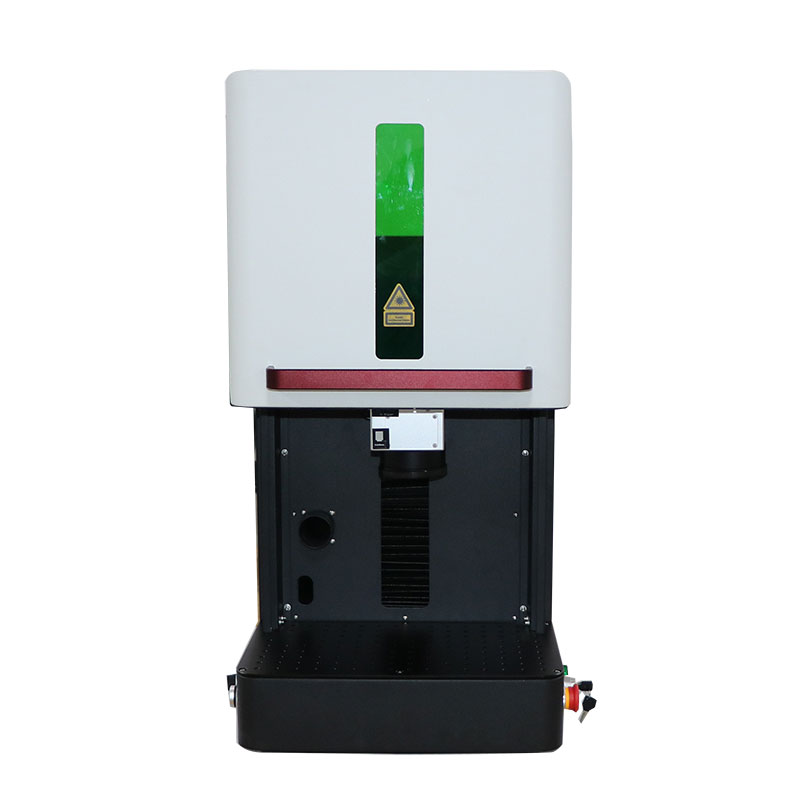

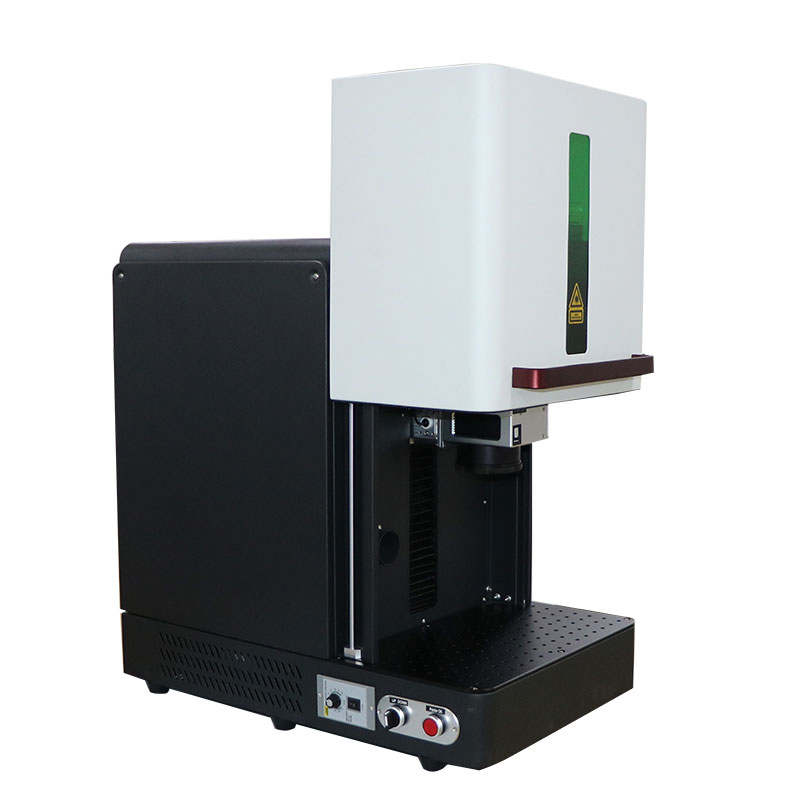

mini sealed fiber laser marking machine
Machine Feature: “Markings are permanent with high abrasion resistance.
Low use-cost, high speed, high production efficiency.
No maintenance laser source: service time 100,000 hours.
Small size,low power consumption, Perfect output beam quality.”
Applicable Materials: Mobile phone keypads, non-opaque-plastic keypads,

electronic components, integrated circuits (IC), electrical appliances,

communication products, sanitary wares, tool accessories, cutters, watches,

glasses, jewelry, auto parts, boxes, bags, clasps, cookers, stainless steel products, etc.
“Technical
Parameters: ” “Laser power 20W 30W 50W
Wave length of laser 1064nm
Marking scope 70X70/110×110/150X150/175X175/200X200mm
Marking Line width 0.01-0.1mm
Marking Depth 0.01-0.2mm(adjustable depending on materials)
Marking Speed ≤7ooomm/s
Power supply 220V/50Hz/500W
Cooling ways Force-air Cooling
Support format PLT, BMP, DXF, JPG, TIF, AI etc
packing size 51*96*102cm 90kg”
main parts “1.110*110mm scan area
2.20w 30W 50w fiber laser raycus max
3.original JCZ USB CARD
4.lap top computer hp
5.beijing sino china digital scanning head
6 f theta lens
7 auto focus

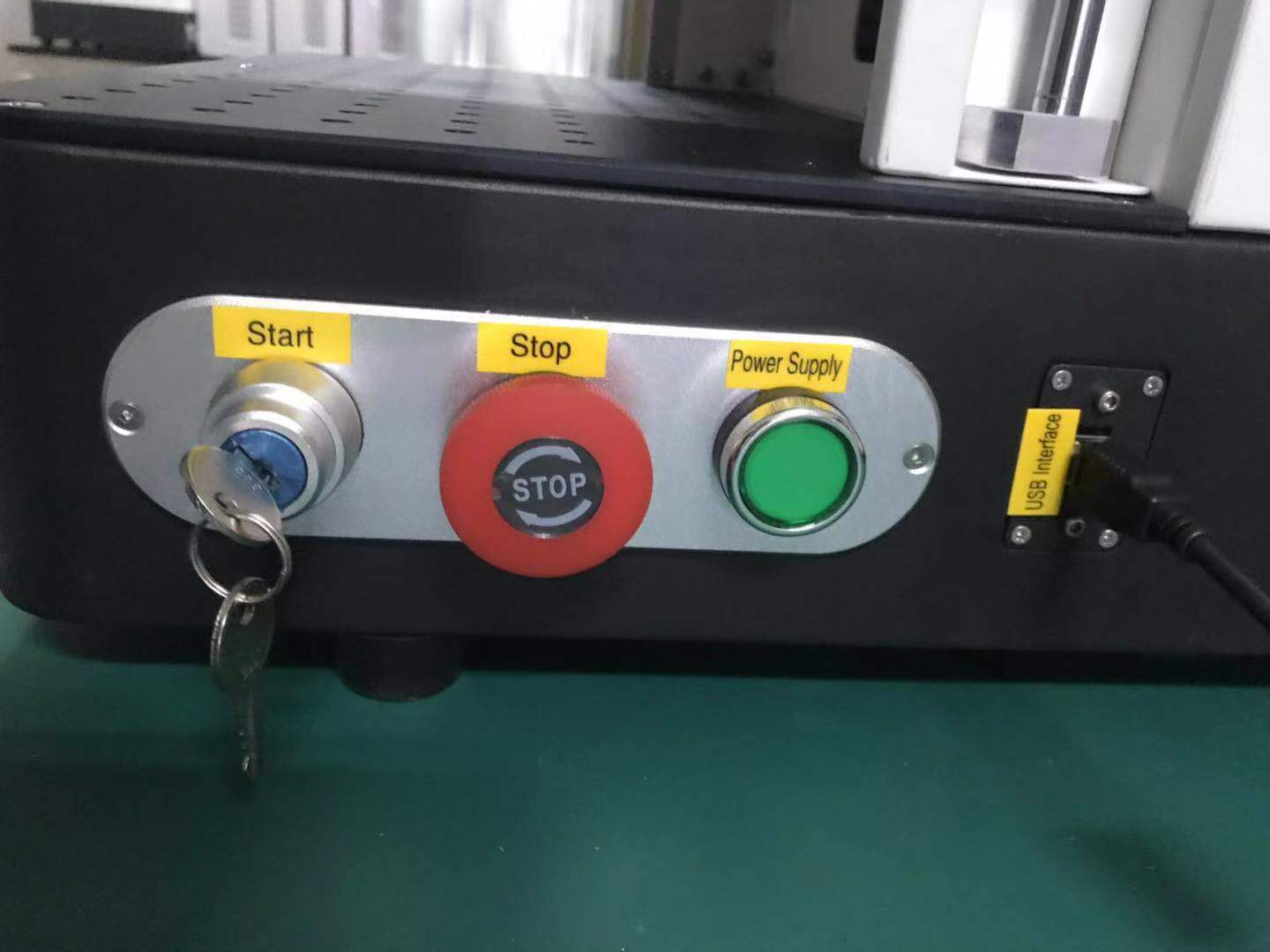

8.foot switch ,tools box”

vedio  https://www.youtube.com/watch?v=FG7KTkQ8chA
