x use 1 57 motor 1

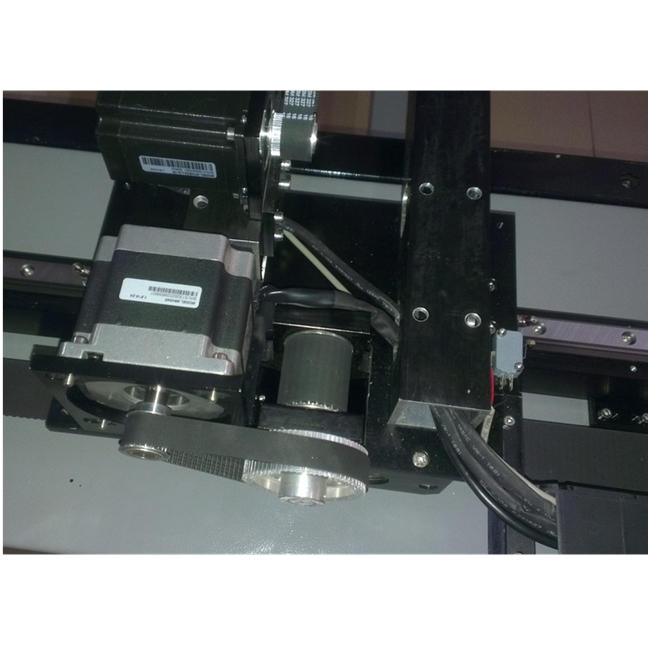

,y use 2 86 motor 1
need 20mm dia lens 1

25mm dia  mirror, 3

x need 3m-20 belt,

y need 5m-40 belt

x use 15 rails ,

y use 20mm rails

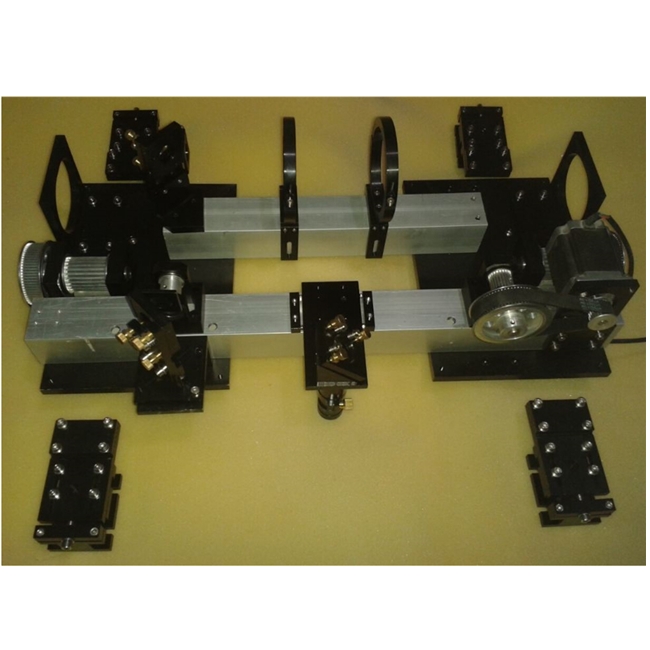

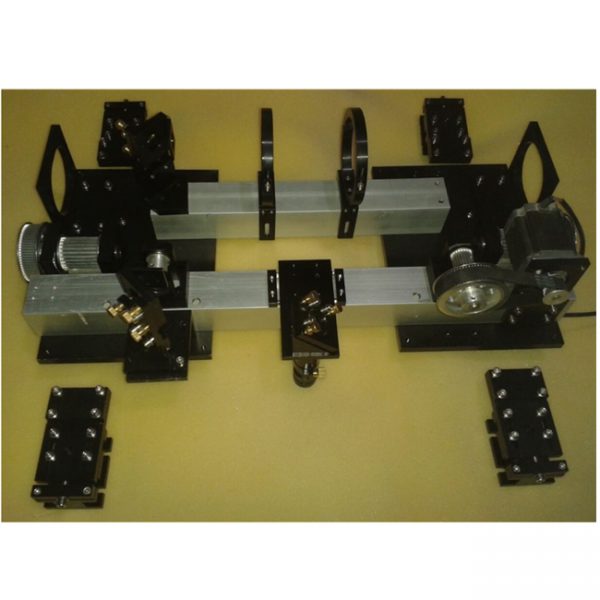

item products pc/set quantity
1 belt fixture PC/set 4
2 right Y AXIS FIXTURE BOARD PC/set 1
3 left Y AXIS FIXTURE BOARD PC/set 1
6 LASER TUBE SUPPORTS pc/set 2
7 FIRST REFLECT MIRROR MOUNT PC/set 1
8 SECOND REFLECT MIRROR MOUNT PC/set 1
9 LASER HEAD PC/set 1
10 X AXIS BELT FIXTURE pc/set 1
11 X AXIS SPEED REDUCER PC/set 1
12 X AXIS 57 MOTOR SUPPORT PC/set 1
13 Y AXIS 86 MOTOR SUPPORT PC/set 2
14 SLIDER BLOCK pc/set 6
15 X AXIS MOTOR GEAR PC/set 1
16 Y AXIS MOTOR GEAR PC/set 1
17 3M-327 LOOP BELT PC/set 2

18   y speed reducers   2
