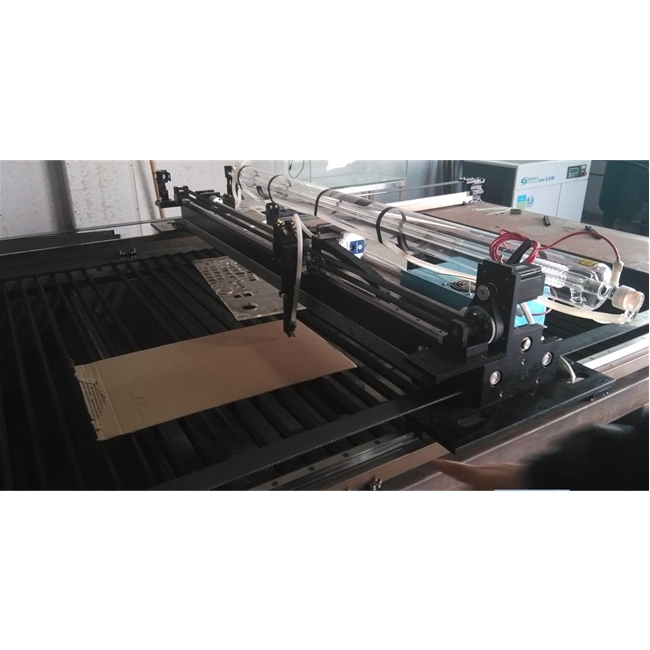

large format flat bed co2 laser cutting machine parts 1318 1325 1525 2030

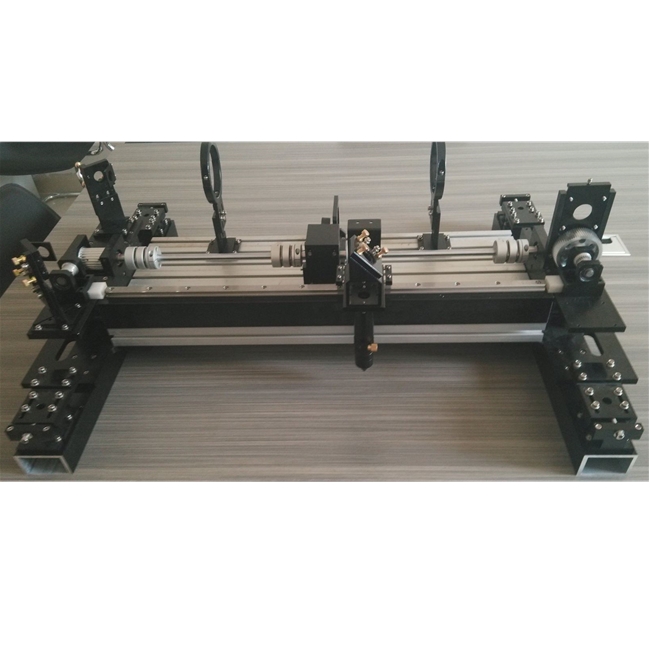

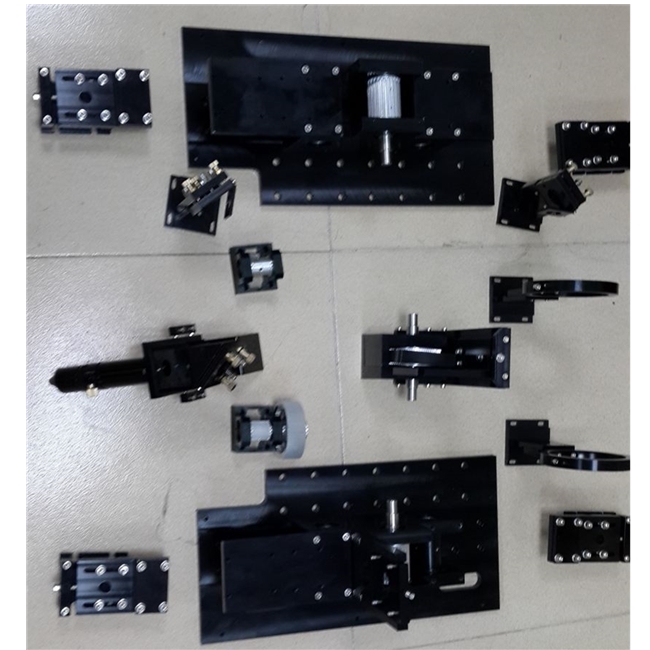

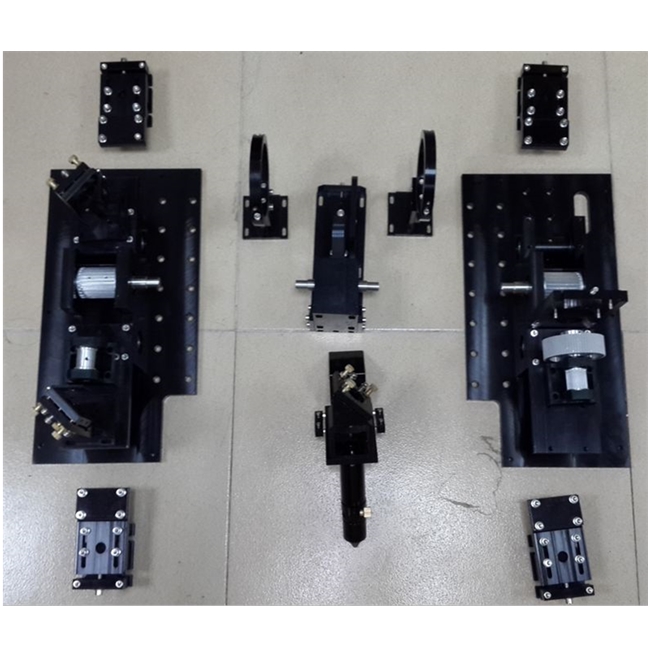

large format cutting machine parts list
1 belt fixture PC/set 4
2 right Y AXIS FIXTURE BOARD PC/set 1
3 left Y AXIS FIXTURE BOARD PC/set 1
6 LASER TUBE SUPPORTS pc/set 2
7 FIRST REFLECT MIRROR MOUNT PC/set 1
8 SECOND REFLECT MIRROR MOUNT PC/set 1
9 LASER HEAD PC/set 1
10 X AXIS BELT FIXTURE pc/set 1
11 X AXIS SPEED REDUCER PC/set 1
12 X AXIS 57 MOTOR SUPPORT PC/set 1
13 Y AXIS 86 MOTOR SUPPORT PC/set 1
14 SLIDER BLOCK pc/set 6
15 X AXIS MOTOR GEAR PC/set 1
16 Y AXIS MOTOR GEAR PC/set 1
17 3M-327 LOOP BELT PC/set 2

x use 1 57 motor ,

y use 1 86 motor
need 20mm dia lens

25mm dia mirror,

x need 3m-20 belt,

y need 5m-40 belt

x use 15rails ,

y use 20mm rails

need shaft connectors 12*12 4pcs
