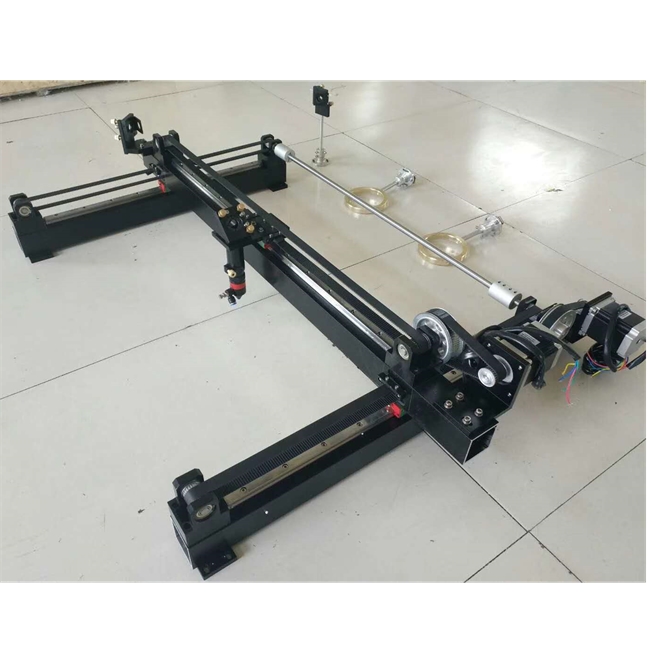

hiwin linear rails motion system for co2 laser machine

hiwin linar rails single head 6040
hiwin linar rails single head 9060
hiwin linar rails single head 1290
hiwin linar rails single head 1390
hiwin linar rails single head 1610

x rails 1

y rails 2

blocks 3

x rails base 1

y rails base 2

tube supports 2pcs
first reflecting
mirrors mounts
1pcs
second reflecting mirror mounts 1pcs
laser cutting head 1pcs
x axis belt fixture 1pcs
x axis reducer 1pcs
motor fixture 2pcs
y axis front belt fixture 2pcs
y axis back belt fixture 1pcs
y axis reducer 1pcs
belt fixture 6pcs
motor gear inner dia 8mm 2pcs
rail block
support sheet 4pcs

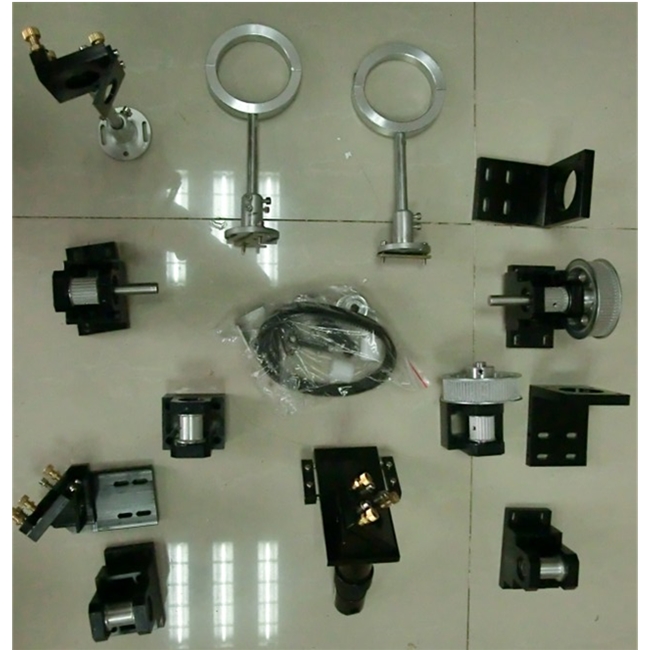

hiwin linar rails whole set parts

with motor 573s15 2,

driver 3nd583 2,

belt 3m-15 10m,

lens 20*50.8 1,

mirrors 25mm 3

,shaft connectors 12*12 2

,air tube fitting big 1
double head

size can be ordered
