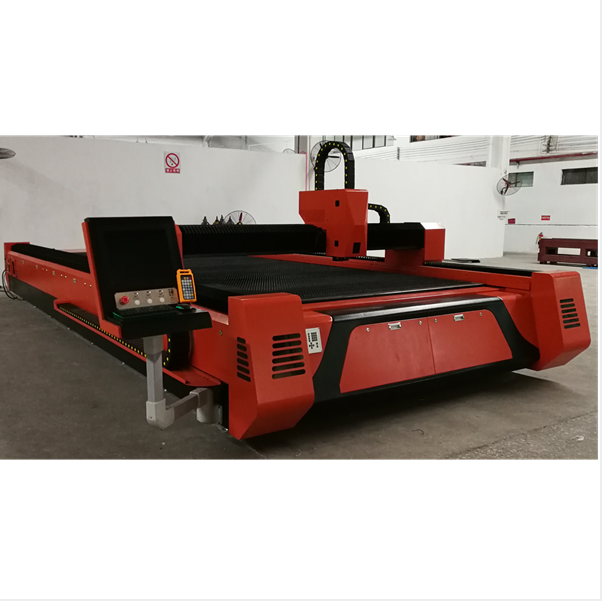

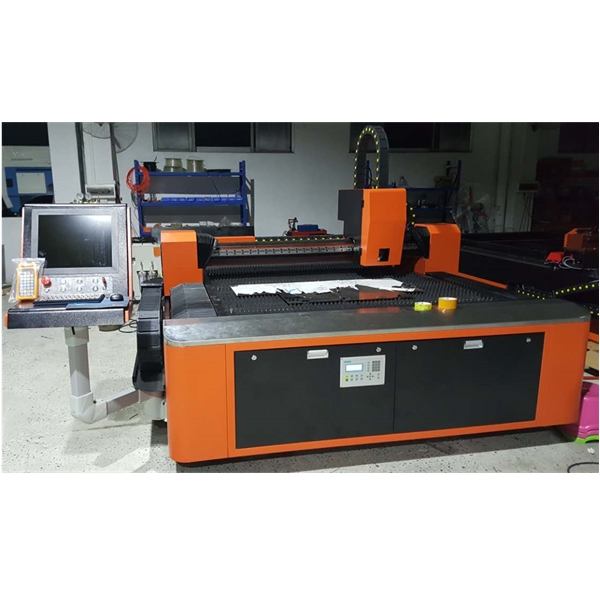

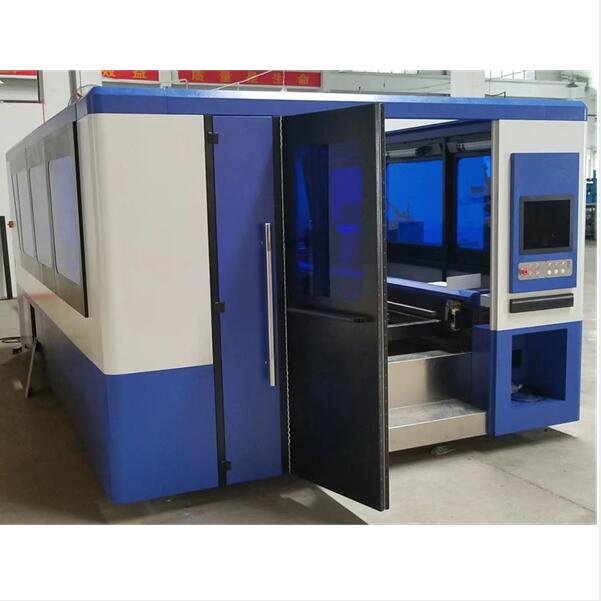

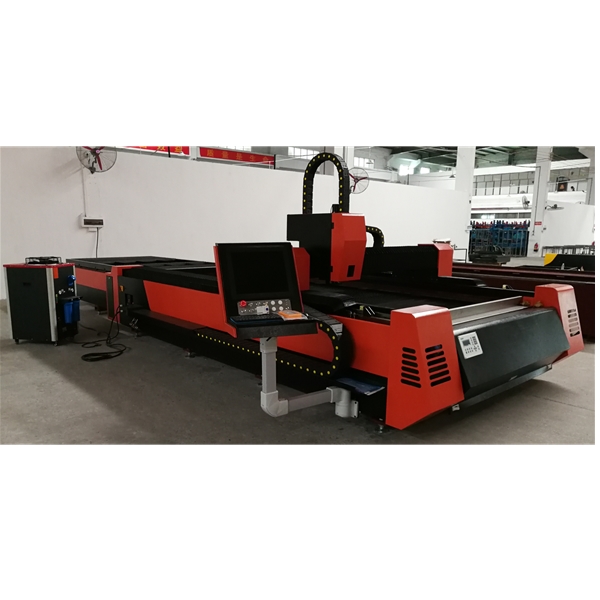

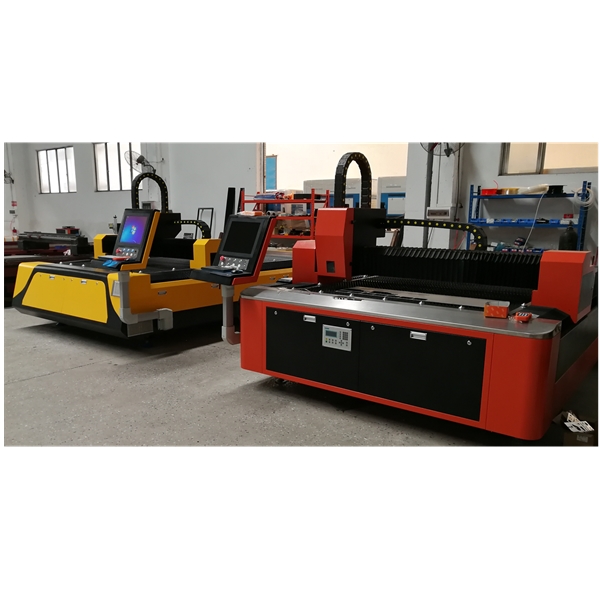

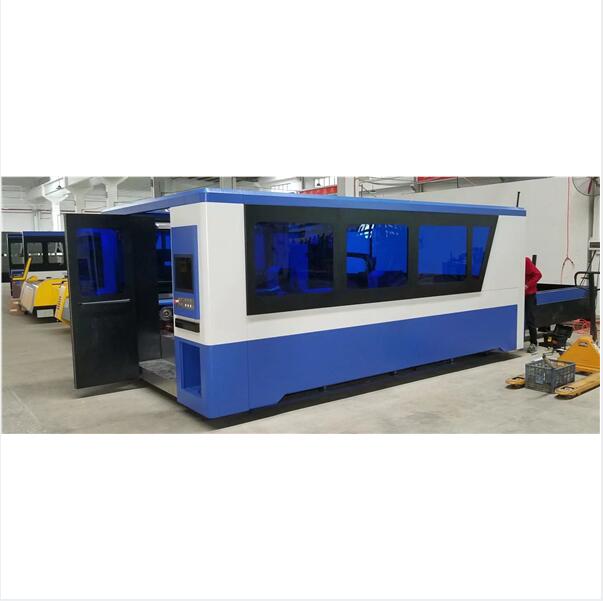

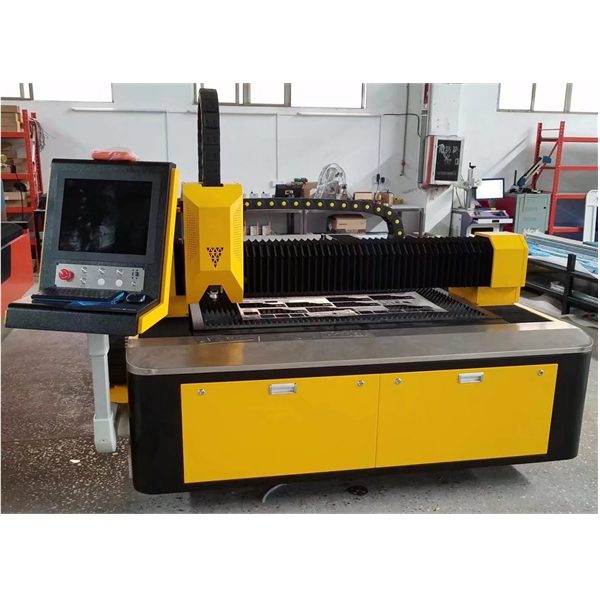

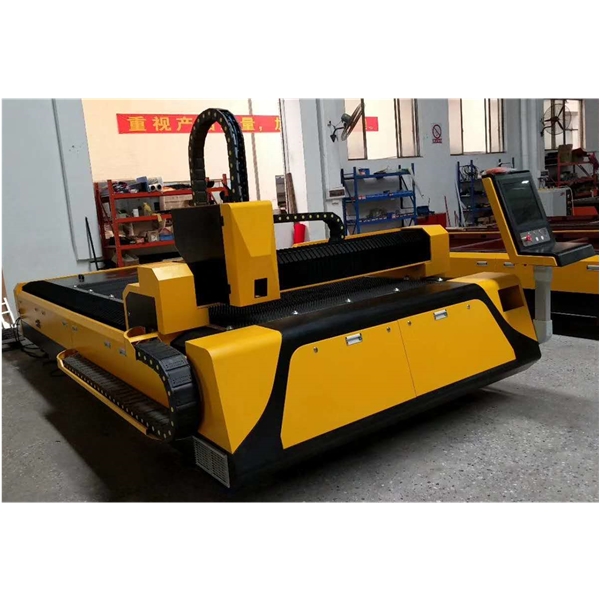

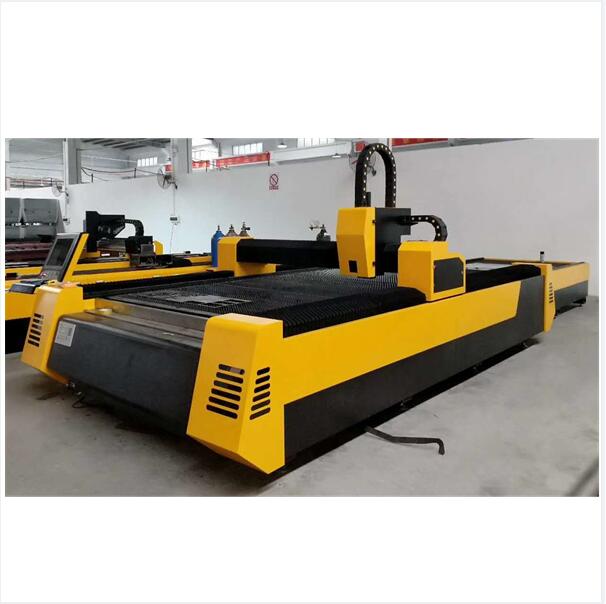

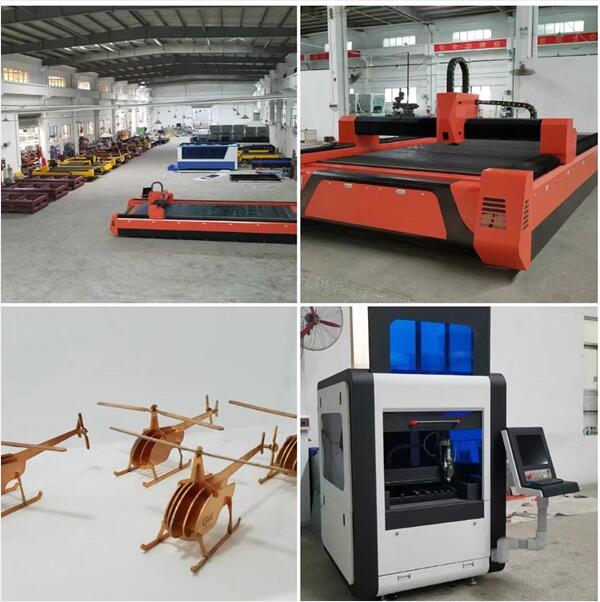

fiber laser cutting machine 3015 4015 4020 6020

Model number	3015 4015 4020 6020
Laser source	Fiber laser
Wave length	1080nm
Laser output power	500-6000w
Cutting size	3000*1500mm
Minimum cutting line width	Below 0.1mm
transmission	Precision racks double servo and drive system
Fiber laser source brand	Can be choose
Cutting speed and thick	Depends on the material
Repeat position precision	+/-0.02mm
Working temperature	0-40oc
Power require	380v 50hz
cooling	Water cooling
Work time without stop	24 hours
Weight kg	4800kg 5200kg 5500kg 8500kg
size	4700*2700*2000mm
Max speed	120m/min
Max acceleration speed	1.2G
X Y position precision	0.03mm
Minimum cut width	0.15mm
Over all power	15kva

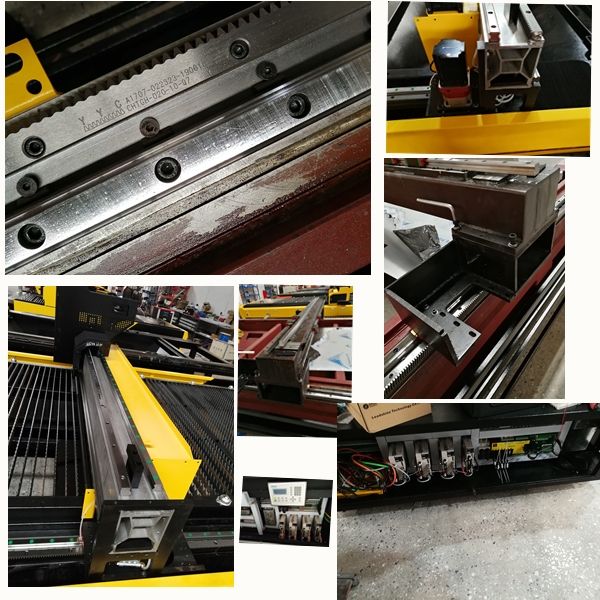

Main parts
racks and pinion	Taiwan  YYC OR APEX
servo motor and driver：	yaskawa
gear box	motory gear ,
electronics	Snider
rials	taiwan  hiwin
fiber source	Raycus max ipg
cutting head.	Raytoos
chiller	Cool master sa

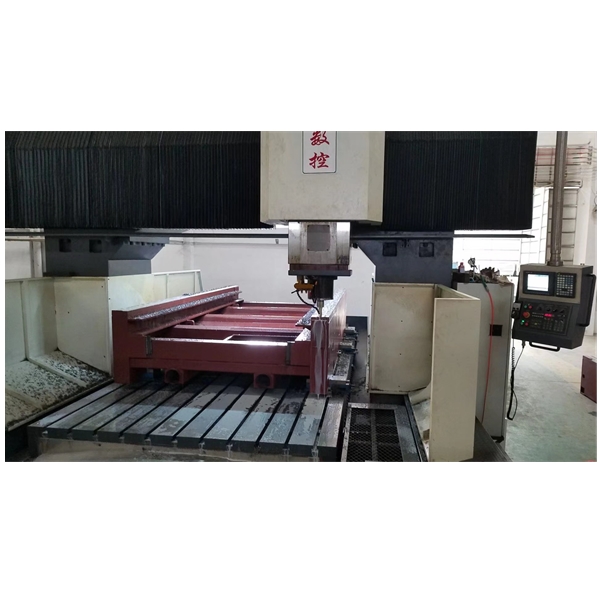

specialty	Table milled,







product description

Optical fiber series laser cutting machine adopts fiber laser with international advanced

technology, equipped with high-precision gear rack, high-efficiency linear guide and other

efficient transmission mechanism, and through advanced numerical control system, a set

of precision CNC fiber laser cutting machine is set. Laser cutting, precision machinery,

numerical control technology and other disciplines in one high-paying technology products,

mainly used for cutting and forming of carbon steel, stainless steel, aluminum alloy and other

metal materials, with high speed, high precision, high efficiency, high cost performance, etc.

It is the preferred cutting machine for the metal material processing industry.



performance

Superior beam quality: Small spot size, higher work efficiency, better processing quality

Extremely high cutting speed: 2 times that of the same power CO2 laser cutting machine;

Extremely high stability: The use of advanced fiber lasers, stable performance, and a service

life of up to 100,000 hours;

High electro-optical conversion rate: Optical fiber laser cutting machine has 3 times higher

electro-optical conversion rate than CO2 laser cutting, energy saving and environmental protection;

Very low use cost: The power consumption of the whole machine is only 20-30% of

the similar CO2 laser cutting machine;

Extremely low maintenance costs: Fiber optic transmission without reflectors saves a

lot of maintenance costs;

Easy operation and maintenance of the product: optical fiber transmission, no need to

adjust the optical path;

Super flexible light guide effect: small size, compact structure, easy and flexible processing

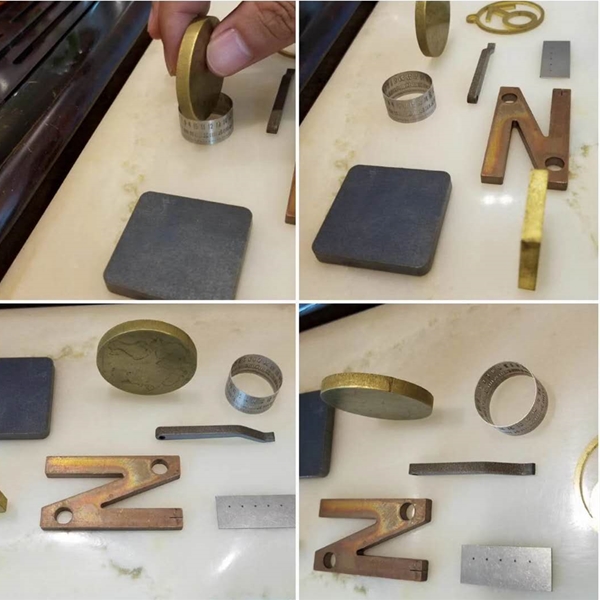

Applicable materials

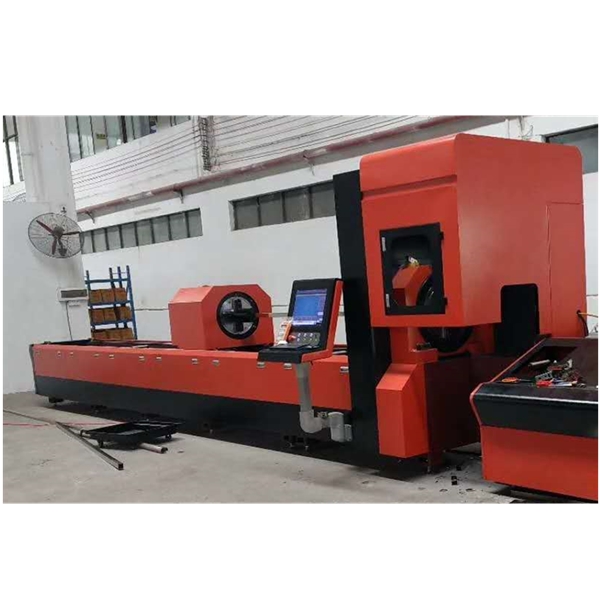

Can cut a variety of metal sheet, pipe (cut pipe plus pipe cutting device can be), mainly

applies to stainless steel, carbon steel, galvanized sheet, electrolytic plate,

Rapid cutting of brass plate, aluminum plate, manganese steel, various alloy plates,

rare metals and other materials.



Industry application

Electric power, automobile manufacturing, mechanical equipment, electrical equipment,

hotel kitchen equipment, elevator equipment, advertising signage, automotive decoration, sheet metal

Works, lighting hardware, display equipment, precision parts, hardware products and other industries.
