tube and plate fiber laser cutting machine 3015

working size 3000*1500mm

diameter: 20mm-200mm

max iding speed 80m/min

max accelerated 1.2g

x y positioning speed  +-0.03mm

xy repeated positioning accuracy +-0.02mm

power supply 380v 50hz

laser power 500w-2000w

machine gross power  below 25kva

whole machine weight 5500kg

machine dimensions  4500*3000*1700mm

transmission precise pinion and rack ,dual drive transmitting

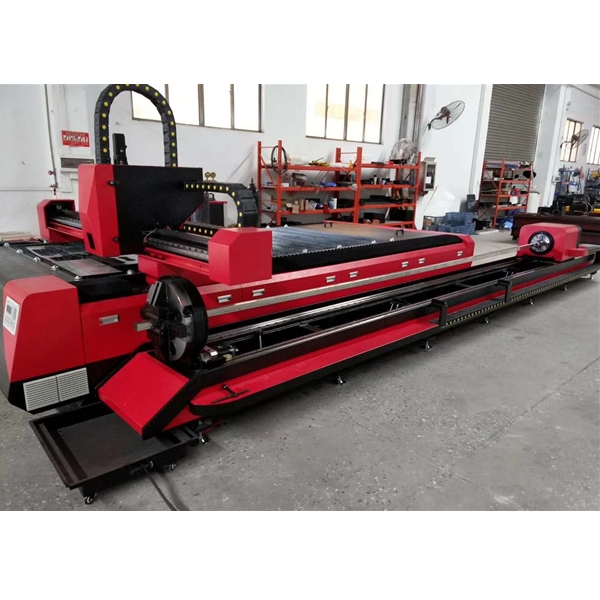

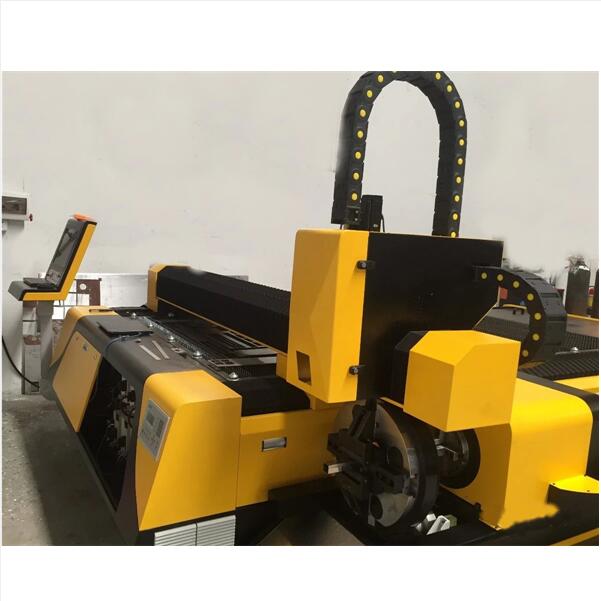

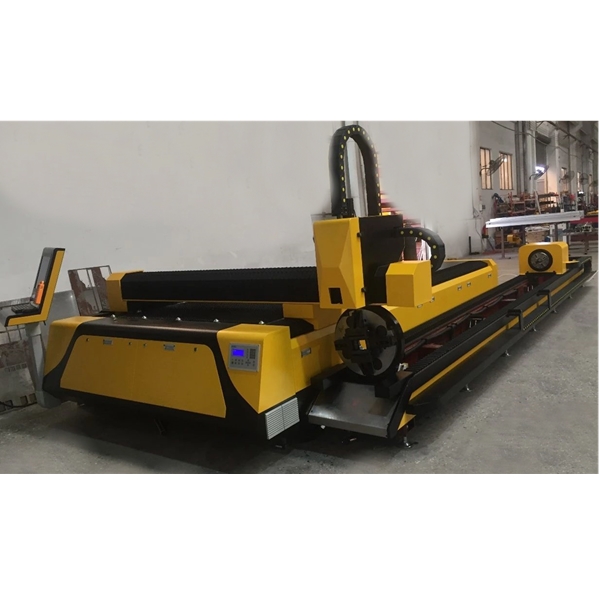

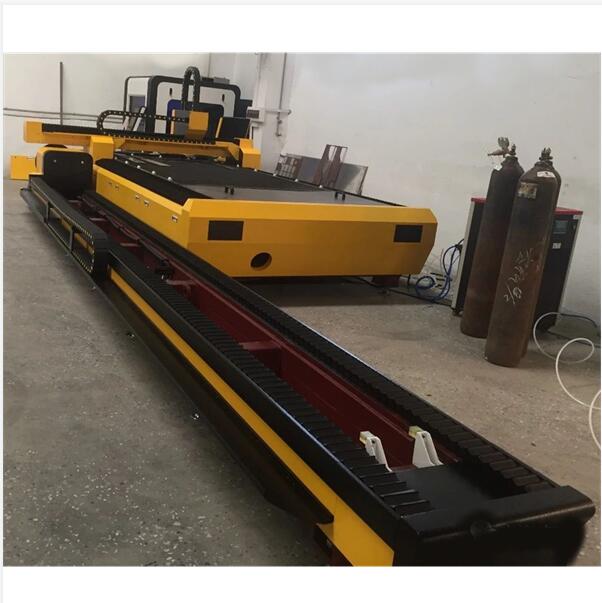

Tube and plate integrated fiber laser cutting machine

is a more practical fiber laser cutting machine, the

platform is easy to exchange, not only can cut the flat

plate, but also can carry out the fast cutting of square

tube and round tube as well as the need of forming

the hole of the forming box.



The tube and plate integrated fiber laser cutting

machine inherits the advantages of the flat plate

laser cutting machine in terms of appearance.

In terms of processing the plate, the cutting

performance of the plate cutting process can be

achieved as in the case of the cutting performance

of the general laser cutting machine. In addition,

in order to meet the process of cutting the pipe,

the laser beam cutter epitaxy is used to complete

the general pipe processing requirements.



Fiber laser tube integrated laser cutting

machine main functions

· It can cut a plurality of tubes with different

directions and different diameters in the main pipe.

· Cut oblique section at the end of the round tube.

· It can cut the intersecting end of the branch

pipe that intersects the circular main pipe.

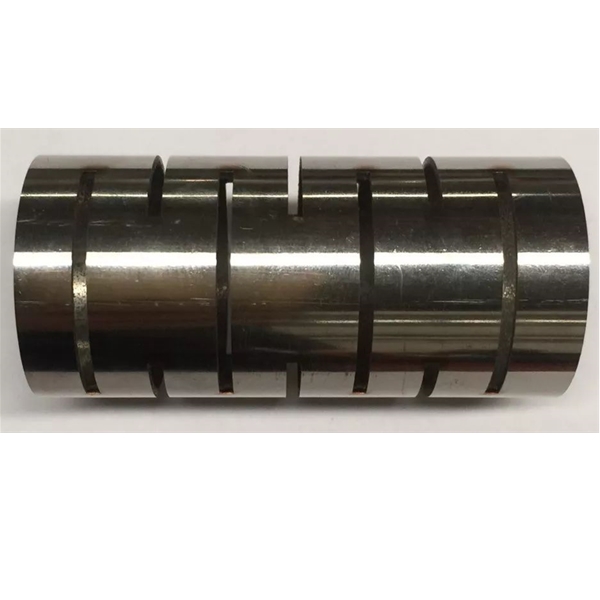

· Square, waist and round holes can be cut on

round tubes.

· Can cut off steel pipe

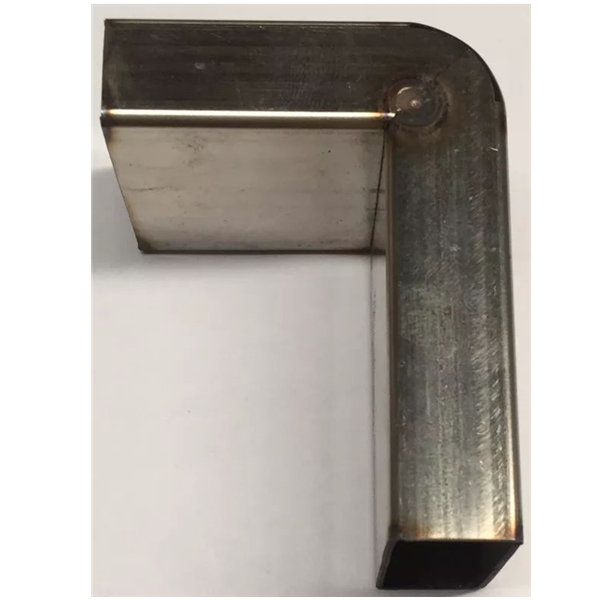

· Can cut a variety of graphics in the square

pipe surface.

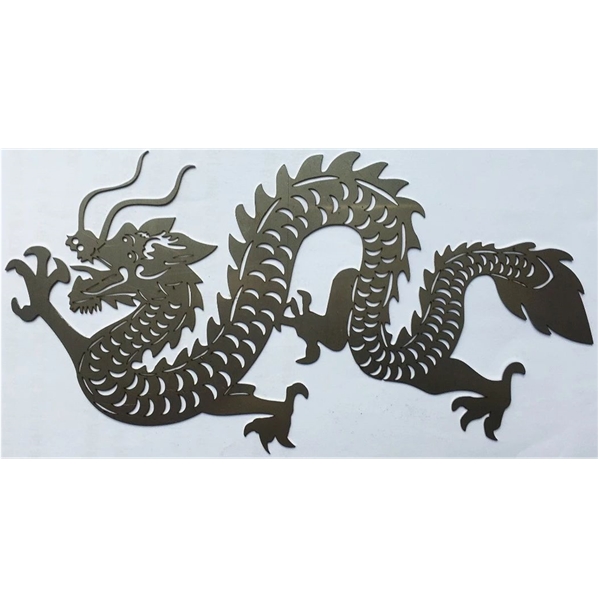

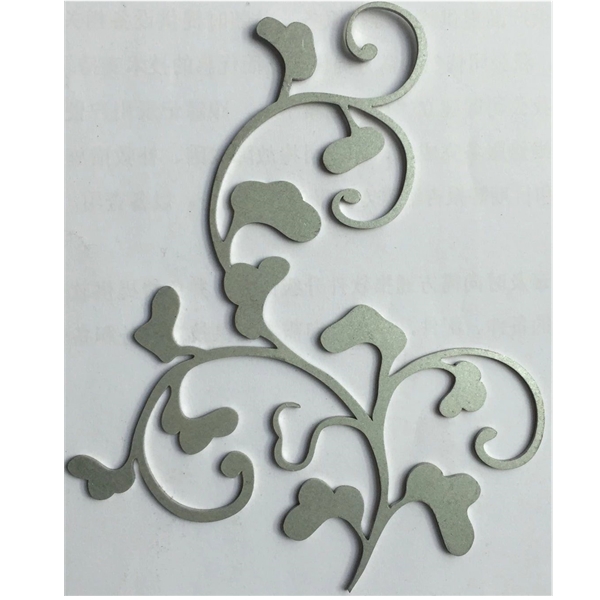

· Can cut different specifications steel plate

· Can make holes and cut in the forming box.

In the sheet metal industry, chassis cabinets,

auto parts, sports equipment, lighting lamps,

metal crafts, and other industries have been

widely used
